467634
Barium titanate(IV)
nanopowder (cubic crystalline phase), <100 nm particle size (BET), ≥99% trace metals basis
Manufacturer: Sigma Aldrich
CAS Number: 12047-27-7
Synonym(S): Titanium barium oxide
Select a Size
| Pack Size | SKU | Availability | Price |
|---|---|---|---|
| 25 G | 467634-25-G | In Stock | ₹ 7,160.00 |
| 100 G | 467634-100-G | In Stock | ₹ 17,114.33 |
467634 - 25 G
In Stock
Quantity
1
Base Price: ₹ 7,160.00
GST (18%): ₹ 1,288.80
Total Price: ₹ 8,448.80
Quality Level
100
Assay
≥99% trace metals basis
form
nanopowder (cubic crystalline phase)
dielectric constant
150
reaction suitability
reagent type: catalystcore: titanium
particle size
<100 nm (BET)
density
6.08 g/mL at 25 °C (lit.)
SMILES string
[Ba++].[O-][Ti]([O-])=O
InChI
1S/Ba.3O.Ti/q+2;;2*-1;
InChI key
WNKMTAQXMLAYHX-UHFFFAOYSA-N
Other Options
Related Products
Description
- General description: Barium titanate(IV) is a ceramic material that can be synthesized by reacting titanium oxide (TiO2) and barium salts in the presence of oleic acid as a stabilizing agent. It has a cubic crystal structure which allows it to have ferroelectric, thermoelectric and piezoelectric properties. It forms a film with intense photoluminescence which can be used for a wide range of electronic applications.[1][2][3]
- Application: BaTiO3 can be used in the fabrication of flexible electronic devices with improved dielectric strength.[4][5]
- Physical form: Some agglomeration of nanoparticles may occur during the drying process, yielding particle sizes of up to 75 microns. These agglomerates can be broken up through ultrasonication, ball milling, or dispersion in solution with a surfactant.
SAFETY INFORMATION
Pictograms
Signal Word
Warning
Hazard Statements
Precautionary Statements
P261 - P264 - P271 - P301 + P312 - P304 + P340 + P312 - P501
Hazard Classifications
Acute Tox. 4 Inhalation - Acute Tox. 4 Oral
WGK
WGK 1
Flash Point(F)
Not applicable
Flash Point(C)
Not applicable
Personal Protective Equipment
dust mask type N95 (US), Eyeshields, Gloves
Compare Similar Items
Show Difference
Quality Level: 100
Assay: ≥99% trace metals basis
form: nanopowder (cubic crystalline phase)
dielectric constant: 150
reaction suitability: reagent type: catalystcore: titanium
particle size: <100 nm (BET)
density: 6.08 g/mL at 25 °C (lit.)
SMILES string: [Ba++].[O-][Ti]([O-])=O
InChI: 1S/Ba.3O.Ti/q+2;;2*-1;
InChI key: WNKMTAQXMLAYHX-UHFFFAOYSA-N
Quality Level:
100
Assay:
≥99% trace metals basis
form:
nanopowder (cubic crystalline phase)
dielectric constant:
150
reaction suitability:
reagent type: catalystcore: titanium
particle size:
<100 nm (BET)
density:
6.08 g/mL at 25 °C (lit.)
SMILES string:
[Ba++].[O-][Ti]([O-])=O
InChI:
1S/Ba.3O.Ti/q+2;;2*-1;
InChI key:
WNKMTAQXMLAYHX-UHFFFAOYSA-N
Quality Level: 100
Assay: 95%
form: __
dielectric constant: __
reaction suitability: __
particle size: __
density: 1.063 g/mL at 25 °C (lit.)
SMILES string: BrCCCCCCCCCC=C
InChI: 1S/C11H21Br/c1-2-3-4-5-6-7-8-9-10-11-12/h2H,1,3-11H2
InChI key: YPLVPFUSXYSHJD-UHFFFAOYSA-N
Quality Level:
100
Assay:
95%
form:
__
dielectric constant:
__
reaction suitability:
__
particle size:
__
density:
1.063 g/mL at 25 °C (lit.)
SMILES string:
BrCCCCCCCCCC=C
InChI:
1S/C11H21Br/c1-2-3-4-5-6-7-8-9-10-11-12/h2H,1,3-11H2
InChI key:
YPLVPFUSXYSHJD-UHFFFAOYSA-N
Quality Level: 100
Assay: 97%
form: __
dielectric constant: __
reaction suitability: __
particle size: __
density: 1.167 g/mL at 25 °C (lit.)

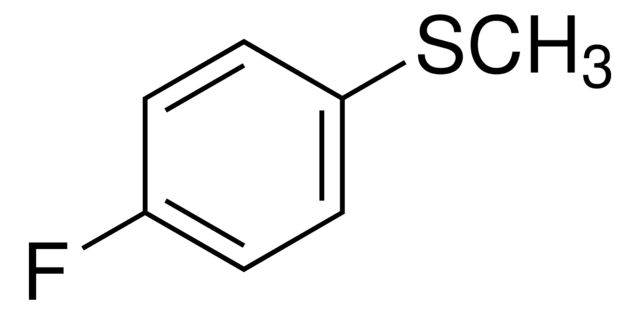

SMILES string: CSc1ccc(F)cc1
InChI: 1S/C7H7FS/c1-9-7-4-2-6(8)3-5-7/h2-5H,1H3
InChI key: XFUMHENRNCUHOH-UHFFFAOYSA-N
Quality Level:
100
Assay:
97%
form:
__
dielectric constant:
__
reaction suitability:
__
particle size:
__
density:
1.167 g/mL at 25 °C (lit.)
SMILES string:
CSc1ccc(F)cc1
InChI:
1S/C7H7FS/c1-9-7-4-2-6(8)3-5-7/h2-5H,1H3
InChI key:
XFUMHENRNCUHOH-UHFFFAOYSA-N
Quality Level: 200
Assay: 95%
form: solid
dielectric constant: __
reaction suitability: __
particle size: __
density: __

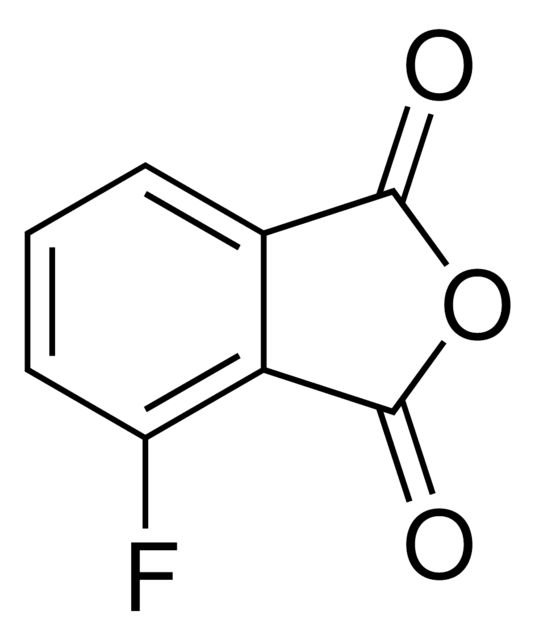

SMILES string: Fc1cccc2C(=O)OC(=O)c12
