02-321-073

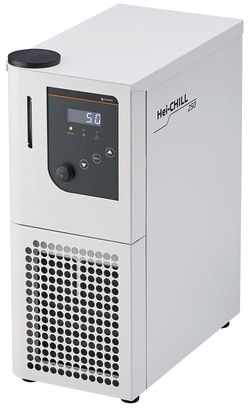

Heidolph™ Hei-CHILL Compact Chillers
Manufacturer: Fischer Scientific
Select a Size
| Pack Size | SKU | Availability | Price |
|---|---|---|---|
| Each of 1 | 02-321-073-Each-of-1 | In Stock | ₹ 9,02,658.00 |
02-321-073 - Each of 1
In Stock
Quantity
1
Base Price: ₹ 9,02,658.00
GST (18%): ₹ 1,62,478.44
Total Price: ₹ 10,65,136.44
Ambient Temperature
5°-40°C
Capacity (Metric)
4 to 8 L Thermal Fluid Fill Volume
Flow Rate
20 L/min.
Display
7-Segment, LED
Max. Pressure
1.3 bar
Noise Level
< 70 dB(A)
Refrigerant
R-143a
Temperature Accuracy
±0.5 K
Electrical Requirements
230 V (50 Hz) or 115 V (60 Hz)
Description
Processing Type: Batch (Water & Water Mixtures)
Cooling Capacity
600 W (at +20°C)
Temperature Range
-10°C to +40°C
For Use With (Application)
Tempering and Delivering Heat Transfer Liquids
Model
Hei-CHILL 600
Output Power
Max: 30 V DC, 0.2 A
Size
Flask: Up to 3 L
Dimensions (L x W x H)
(350 x 480 x 595 mm)
Voltage
Overvoltage Category: II
Related Products
Description
- Compact design fits effortlessly on a laboratory bench Clearly arranged control elements Large, RS232 LED digital interface Membrane keypad Window for monitoring the tempering liquid level Automatic start and shut down feature Temperature range from -10° to 40°C Temperature stability of ±0.5 K
