02-321-088

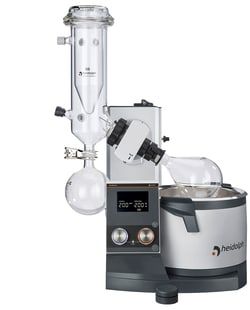

Heidolph™ Hei-VAP Core Rotary Evaporator
Manufacturer: Fischer Scientific
Select a Size
| Pack Size | SKU | Availability | Price |
|---|---|---|---|
| Each of 1 | 02-321-088-Each-of-1 | In Stock | ₹ 9,93,351.60 |
02-321-088 - Each of 1
In Stock
Quantity
1
Base Price: ₹ 9,93,351.60
GST (18%): ₹ 1,78,803.288
Total Price: ₹ 11,72,154.888
Capacity (Metric)
5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric)
20°C to 210°C
Wattage
1400 w
Condenser Type
Vertical condenser for maximum evaporation performance
Material
Stainless Steel V4A Bath
Type
Rotary Evaporator
Model
HL (Hand Lift)
Speed
10 to 280 rpm
Display
3.5 in. LCD Display
Electrical Requirements
115 V
Glassware Assembly Type
Coated Glassware Set G3B XL
Temperature Accuracy
±1°C
Frequency
50/60 Hz
Timer
No
Related Products
Description
- Equipped with smart details such as Easy-Clip, patented clamping sleeve, lift stop to limit immersion depth, universal 5 L heating bath and various glass accessories Clear digital display for monitoring the current values and separate button to display the set values Operating panel is splash water protected in accordance with IP 42 Two separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indication Activated lock feature prevents inadvertent adjustments Residual heat indicator when >50 °C Standby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift models Ergonomically optimized heating bath handles sit securely in your hand Easily adjust immersion depth up to 160 mm and the tilt angle of the evaporating flask from 20° to 80° Grease-free operation thanks to innovative sealing technology Ventilation cap with PTFE inlet and free of ground joints
- Optionally available with replenishment valve Optional cable extension – The operating panel can be detached for use outside closed fume hoods Model options available: Hand or motor lift Coated or uncoated glassware Glassware options: Diagonal condenser for all standard distillations Vertical condenser for all standard distillations Vertical condenser for maximum evaporation performance Dry ice condenser for low-boiling solvents Vertical condenser for reflux distillation
Compare Similar Items
Show Difference
Capacity (Metric): 5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric): 20°C to 210°C
Wattage: 1400 w
Condenser Type: Vertical condenser for maximum evaporation performance
Material: Stainless Steel V4A Bath
Type: Rotary Evaporator
Model: HL (Hand Lift)
Speed: 10 to 280 rpm
Display: 3.5 in. LCD Display
Electrical Requirements: 115 V
Glassware Assembly Type: Coated Glassware Set G3B XL
Temperature Accuracy: ±1°C
Frequency: 50/60 Hz
Timer: No
Capacity (Metric):
5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric):
20°C to 210°C
Wattage:
1400 w
Condenser Type:
Vertical condenser for maximum evaporation performance
Material:
Stainless Steel V4A Bath
Type:
Rotary Evaporator
Model:
HL (Hand Lift)
Speed:
10 to 280 rpm
Display:
3.5 in. LCD Display
Electrical Requirements:
115 V
Glassware Assembly Type:
Coated Glassware Set G3B XL
Temperature Accuracy:
±1°C
Frequency:
50/60 Hz
Timer:
No
Capacity (Metric): 5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric): 20°C to 210°C
Wattage: 1400 w
Condenser Type: Dry ice condenser for low-boiling solvents
Material: Stainless Steel V4A Bath
Type: Rotary Evaporator
Model: HL (Hand Lift)
Speed: 10 to 280 rpm
Display: 3.5 in. LCD Display
Electrical Requirements: 115 V
Glassware Assembly Type: Coated Glassware Set G5B
Temperature Accuracy: ±1°C
Frequency: 50/60 Hz
Timer: No
Capacity (Metric):
5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric):
20°C to 210°C
Wattage:
1400 w
Condenser Type:
Dry ice condenser for low-boiling solvents
Material:
Stainless Steel V4A Bath
Type:
Rotary Evaporator
Model:
HL (Hand Lift)
Speed:
10 to 280 rpm
Display:
3.5 in. LCD Display
Electrical Requirements:
115 V
Glassware Assembly Type:
Coated Glassware Set G5B
Temperature Accuracy:
±1°C
Frequency:
50/60 Hz
Timer:
No
Capacity (Metric): 5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric): 20°C to 210°C
Wattage: 1400 w
Condenser Type: Vertical condenser for reflux distillation
Material: Stainless Steel V4A Bath
Type: Rotary Evaporator
Model: HL (Hand Lift)
Speed: 10 to 280 rpm
Display: 3.5 in. LCD Display
Electrical Requirements: 115 V
Glassware Assembly Type: Coated Glassware Set G6B
Temperature Accuracy: ±1°C
Frequency: 50/60 Hz
Timer: No
Capacity (Metric):
5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric):
20°C to 210°C
Wattage:
1400 w
Condenser Type:
Vertical condenser for reflux distillation
Material:
Stainless Steel V4A Bath
Type:
Rotary Evaporator
Model:
HL (Hand Lift)
Speed:
10 to 280 rpm
Display:
3.5 in. LCD Display
Electrical Requirements:
115 V
Glassware Assembly Type:
Coated Glassware Set G6B
Temperature Accuracy:
±1°C
Frequency:
50/60 Hz
Timer:
No
Capacity (Metric): 5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric): 20°C to 210°C
Wattage: 1400 w
Condenser Type: Diagonal condenser for all standard distillations
Material: Stainless Steel V4A Bath
Type: Rotary Evaporator
Model: ML (Motor Lift)
Speed: 10 to 280 rpm
Display: 3.5 in. LCD Display
Electrical Requirements: 115 V
Glassware Assembly Type: Glassware Set G1
Temperature Accuracy: ±1°C
Frequency: 50/60 Hz
Timer: No
Capacity (Metric):
5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric):
20°C to 210°C
Wattage:
1400 w
Condenser Type:
Diagonal condenser for all standard distillations
Material:
Stainless Steel V4A Bath
Type:
Rotary Evaporator
Model:
ML (Motor Lift)
Speed:
10 to 280 rpm
Display:
3.5 in. LCD Display
Electrical Requirements:
115 V
Glassware Assembly Type:
Glassware Set G1
Temperature Accuracy:
±1°C
Frequency:
50/60 Hz
Timer:
No
