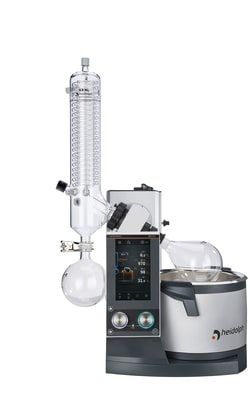

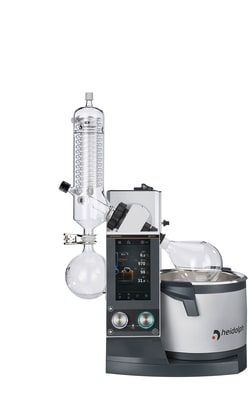

Heidolph™ Hei-VAP Ultimate Control Rotary Evaporator
Manufacturer: Fischer Scientific
Select a Size
| Pack Size | SKU | Availability | Price |
|---|---|---|---|
| Each of 1 | 03-604-1074-Each-of-1 | In Stock | ₹ 17,87,947.32 |
03-604-1074 - Each of 1
In Stock
Quantity
1
Base Price: ₹ 17,87,947.32
GST (18%): ₹ 3,21,830.518
Total Price: ₹ 21,09,777.838
Height (Metric)
887 mm G3 Glassware, 920 mm G3 XL Glassware
Voltage
115 V
Capacity (Metric)
5 L Evaporating Flask, 4.5 L Bath
Temperature Range (Metric)
20°C to 210°C
Includes
Glassware set, Rotary evaporator
Electrical Requirements
115 V
Glassware Assembly Type
G6 vertical glassware
Temperature Accuracy
±1°C
Frequency
50/60 Hz
Timer
Yes
Length (Metric)
739 mm
Width (Metric)
477 mm
Speed
10 to 280 rpm
Display
7 in. LCD Color Graphic Display
Wattage
1400 w
Condenser Type
Reflux
Material
Stainless Steel V4A Bath
Type
Rotary Evaporator
Model
Motor Lift
Related Products
Description
- Central operating panel with touch display for controlling the entire system including the vacuum and the cooling temperature Clear display of all values With timer, limitation of max
- temperature, multilingual menu and text display for error messages Separate knobs for rotation and heating with locking function to prevent accidental readjusting LED ring lights and pictogram to display the activity even from a distance Integrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controller Expandable solvent library
- Transfer favorites to other devices using a USB stick Define and save own evaporation processes (ramps) Automatically evaporate with the Dynamic AUTOaccurate Program (DAA) Direct access to two favorites on the start screen USB and Micro SD interfaces plus LAN / RS 232 interfaces Optional display of vapor temperature Includes vacuum and chiller control
