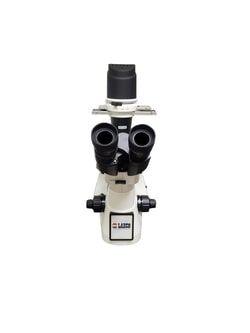

Laxco™ LMI-3000 Series Routine Inverted Microscope PROMO
The LMI-3000 Series Inverted Microscope features a compact stand, phase contrast illumination and research grade optics, making it ideal for cell culture applications.
Manufacturer: Fischer Scientific
The price for this product is unavailable. Please request a quote
Depth (English)
22.4 in.
Height (English)
19.9 in.
Includes
Stand, Objectives, Eyepieces, Phase Slider
Width (English)
9 in.
Design Type
Greenough Optical System
Objective Types
Infinity Corrected Plan Achromatic, Phase Contrast
Nosepiece
5-position
Warranty
5 Years Optical and Mechanical, 1 Year Electrical
Frequency
50/60 Hz
Lighting Type
LED
Model
LMI3000 Series
Depth (Metric)
56.9 cm
Height (Metric)
50.5 cm
Voltage
100/240 V
Width (Metric)
22.9 cm
Condenser Type
0.3 NA, 72 mm WD
For Use With (Application)
Life Science, Research, Academia, Cell Culture
Optical Design
Infinity Optical System
Field of View
22 mm
Eyepiece
10X/22 mm
Head Style
Trinocular
Product Type
Inverted Microscope
Related Products
Description
- Description Optics: Brightfield and Phase Contrast Illumination LWD plan achromat phase contrast objectives 10X/22 mm high eyepoint widefield eyepieces Infinity corrected optical system Anti-reflective coatings on optics Parcentric and parfocal objectives Pre-centered phase annuli Stand: Compact and stable microscope body Trinocular photo port for attaching camera 45° inclined eyetubes Diopter adjustment 50 to 75 mm Interpupillary adjustments 5 W LED transmitted illumination Fixed stage platform with optional mechanical stage Coaxial coarse/fine focus drive with 2 micron precision High contrast for cell and tissue culture applications Camera port for attaching a camera (80:20 light split) Warranty and Services 5 year mechanical/optical defects, 1 year electrical
