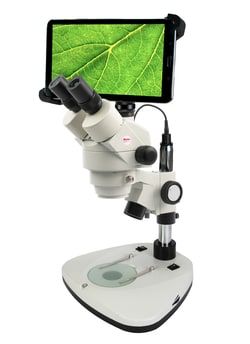

National Optical™ Stereo Microscope with Tablet

Description

• The 440T-440PLL is a professional-quality stereo microscope for industrial and educational settings
• The large zoom ratio of 6:1 and a standard working distance of 110 mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X
• TABLET LCD Android tablet with 1280 x 800 screen resolution Connection: WiFi, micro SD card WiFi Resolution 1920 x 1080 / 1280 x 720 4.0 MP capture resolution WiFi (2.4 or 5GHz) and Ethernet (RJ45) MotiConnect App Connect 5 WiFi devices at one time Connect office/clinic/business network through RJ45 port connection MAGNIFICATION 0.75x to 4.5x Zoom OPTICAL SYSTEM Trinocular viewing head Paired widefield 10x eyepieces are 45° inclined, with dual diopter adjustments, interpupillary adjustment from 55 mm to 75 mm
• Accepts 23 mm eyepiece reticle
• Viewing head rotates 360°
• Continuous magnification from 7.5x through 45x
• FOCUSING Large dual focusing knobs with slip clutch to prevent damage to mechanism
• Tension adjustment eliminates focus 'drift'
• ILLUMINATION Top light is LED with directional beam and rheostat control
• Bottom light is LED for cool operation, greater light efficiency
• Base mounted light controls permit choice of top only, bottom only, or dual illumination
• Heavy-duty 3-wire grounded cord and plug
• 110 to 240V internal auto-switching power supply
• Supplied with American style IEC power cord
• Additional wall adapter for 240V operation required
• STAGE Two 80 mm stage plates (frosted glass and reversible black/white plastic contrast plates)
• Blue filter for transmitted light
• Locked-on stage clips
• FRAME Professional, all-metal frame, gray enamel finish
• Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage
• Height: 340 mm extends to 433 mm for larger objects
• Base width: 171 mm
• Base depth: 242mm
