Z220LS100

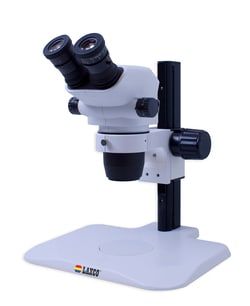

Laxco™ LMS-Z200 Series Stereo Zoom Microscope System
Manufacturer: Fischer Scientific
Select a Size
| Pack Size | SKU | Availability | Price |
|---|---|---|---|
| Each of 1 | Z220LS100-Each-of-1 | In Stock | ₹ 1,17,046.08 |
Z220LS100 - Each of 1
In Stock
Quantity
1
Base Price: ₹ 1,17,046.08
GST (18%): ₹ 21,068.294
Total Price: ₹ 1,38,114.374
Includes
Head, Compact Plain Base, Eyepieces, Power Cord
Magnification Power
7X to 45X
Field of View
20 mm
Dimensions (L x W x H)
20.3 x 10.2 x 40.6 cm
Product Type
Stereo Microscope
Head Style
Binocular
For Use With (Application)
life science, research, academia, industrial
Eyepiece
10X/20 mm
Design Type
Greenough Optical System
Objective Types
Plan
Zoom Range
7x to 45x
Warranty
5 years optical and mechanical, 1 year electrical from date of purchase
Model
LMS-Z200 Series
Lighting Type
None
Frequency
50/60 Hz
Quantity
1
Related Products
Description
- Description Optics: 6.4:1 Zoom Ratio (0.7-4.5x zoom) Standard magnification: 7x-45x Auxiliary objectives available to expand magnification from 3.5x-180x 10x/20mm widefield high eyepoint eyepieces standard Greenough optical system Binocular (LMS-Z220) and Trinocular (LMS-Z230) heads available Combines a wide field of view, large zoom ratio, and long working distance Standard working distance: 100mm; optional auxiliary lens allow for WD of 30mm-165mm Coated optics produce a flat field of view, excellent depth of field and contrast, and high resolution Viewing head 45°inclined for comfortable viewing Diopter adjustable eyetubes (range ± 5), allows adjustment for user specific eyesight Interpupillary adjustment: 54mm-75mm Combine the trinocular optics with a SeBaCam camera for imaging and documentation Stand/Base Options: LS100: Plain Stand Compact, low-profile base No illumination LS200: Halogen Transmitted/Reflected Stand Compact base Upper illumination: halogen Lower illumination: halogen LS200LED: LED Transmitted/Reflected Stand Compact base Upper illumination: LED Lower illumination: LED LS300: LED Low Profile Transmitted/Reflected Stand Compact, low-profile base Upper illumination: LED Lower illumination: LED B100: single arm boom stand, LED dual gooseneck illuminator Large, sturdy base Extended height and reach for large samples Includes dual LED gooseneck illuminator B200: dual arm ball bearing boom stand, LED dual gooseneck illuminator Large, sturdy base Dual boom arm with ball bearings for smooth movement Extended height and reach for large samples Includes dual LED gooseneck illuminator MZS32: Advanced LED Transmitted/Reflected Stand (BF and Edge/Oblique) Brightfield and edge/oblique illumination Upper Illumination: dual LED light guides Lower Illumination: LED ring light Optional LED ring lamp Touch panel control of all lighting techniques 10 in
- of focusing travel on continuous gear Large working surface of 218mm x 302mm Ergonomically contoured, low profile base allows for comfortable arm support MZS33: Advanced LED Transmitted/Reflected Stand (BF, Edge and Ring Light) Brightfield, edge/oblique, and fluorescence illumination Upper Illumination: dual LED light guides with interchangeable wavelength specific LEDs Lower Illumination: LED ring light LED ring lamp Touch panel control of all lighting techniques 10 in
- of focusing travel on continuous gear Large working surface of 218mm x 302mm Ergonomically contoured, low profile base allows for comfortable arm support Warranty and Services 5 year mechanical/optical defects, 1 year electrical
