10-451-205BB

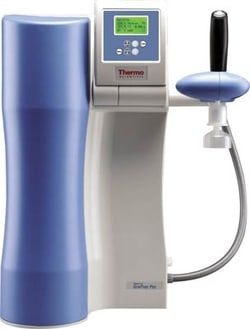

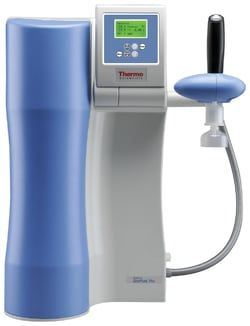

Thermo Scientific™ Barnstead™ GenPure™ xCAD Plus Ultrapure Water Purification System, UV/UF - TOC (bench version) PROMO
Manufacturer: Thermo Scientific™
The price for this product is unavailable. Please request a quote
Conductivity
0.055 μS/cm
Bacterial Content
<0.01 CFU/mL
Feedwater Connector
3/4 in.
Flow Rate
Up to 2 L/min.
Remote Dispenser
Yes
TOC Monitor with UV Intensity Monitoring
Yes
Type
Water Purification System
Operating Pressure
0.1 to 6 bar
Power Consumption
0.1 kW
Width (English)
14.6 in.
Height (English)
24 in.
Depth (English)
13 in.
Electrical Requirements
90/240 V 50/60 Hz
Frequency
50/60 Hz
Description
Barnstead GenPure xCAD Plus UV/UF TOC (bench version)
Endotoxin Concentration
<0.001 EU/mL
Feed Water Monitoring
Integrated
Product Water Type
Type 1
Resistivity
18.2 Mohm.cm (at 25°C)
Total Organic Carbon
1 to 5 ppb
Model
Barnstead GenPure xCAD Plus UV/UF - TOC (bench version)
Particles >0.2µM/mL
<1
Temperature Range (Metric)
2°C to 35°C
Width (Metric)
372 mm
Height (Metric)
615 mm
Depth (Metric)
330 mm
Voltage
90/240 V
Related Products
Description
- All GenPure systems exceed international standards ASTM Type I, ISO 3696 Grade 1, ASTM D1193 and CLSI-CLRW
- xCAD (Extended Control and Dispenser): System provides more flexibility for ultrapure water dispensing with an action radius of 32″ (80cm)
- Ergonomic dispensing arm provides precise volume dosing at the press of a button
- Flexible dispenser offers positions including turned, height adjusted or extended toward your vessel
- One-of-a-kind design provides access to all system controls at your fingertips
- Simultaneously dispense from up to three dispensers: Each system ships with a single xCAD Plus remote dispenser
- For increased flexibility, add one or two more xCAD Plus dispensers
- Integrated feed water monitoring: Additional measuring cell monitors feed water conductivity
- If the quality of the feed water drops below the set value, a fault message will immediately be displayed
- Online TOC measurement with UV intensity monitoring (available on systems with optional TOC only): Real-time TOC monitoring offers continual measurement of organic substances present in the water
- Continuous monitoring of UV intensity removes the risk of false TOC values due to diminished UV intensity
- Fault message alerts user when the UV lamp intensity is no longer sufficient for accurate TOC measurements
- UV Photo-oxidation 185/254 nm: High performance UV assembly reliably reduces the content of microorganisms and their metabolites
- UV oxidation also reduces organic compounds in the water to ultra-low levels
- Leak detection: An error message is displayed when internal leaks are detected
- Ready to use: Feed water pressure switch, wall bracket, UV lamp, ultrapure cartridge, sterile filter, all are included in one part number
- Measurement of conductivity/resistivity: Conductivity cells are carefully calibrated prior to each measurement via built-in reference resistance with cell constants at 0.01cm -1
- Temperature measurements are made by a platinum chip sensor with ± 0.1°C accuracy
- Quick-connect cartridge replacement: Aquastop quick-connect capability enables cartridge replacement within seconds even mid-operation
- Exact dosing: Electronic dosing yields fully automatic volume control of 0.01-65 L with <2% accuracy
- GLP-compliant documentation: Real-time clock and code-protected operating system prevents unauthorized changes to system settings
- RS-232 interface with adjustable send-interval offers safe data transfer of all measured data, faults, date and time to a PC computer or log printer
- Digital microprocessor control automatically monitors and stores faults from the last four weeks
- USP-compliant conductivity measurement with temperature compensation can be switched on or off.
