S96037

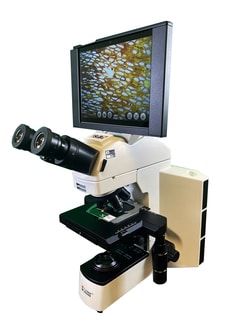

Labomed™ Lx 400 Research and Digital Research Microscopes
Manufacturer: Labo America Inc
Select a Size
| Pack Size | SKU | Availability | Price |
|---|---|---|---|
| Each of 1 | S96037-Each-of-1 | In Stock | ₹ 1,15,591.56 |
S96037 - Each of 1
In Stock
Quantity
1
Base Price: ₹ 1,15,591.56
GST (18%): ₹ 20,806.481
Total Price: ₹ 1,36,398.041
Axis Type
Coaxial Coarse and Fine
Condenser Type
1.25 N.A. Abbe with aspheric lens
Diaphragm
Iris
Head Style
Binocular
Magnification Power
4X, 10X, 40X, 100X
For Use With (Application)
Laboratory and research application
Includes
Power cable (6ft.), cargille immersion oil, Nylon dust cover and cleaning Cloth, Styrofoam casing, operation manual, allen wrench, power cord, spare bulb and spare fuse
Optical Design
Color corrected infinity
Width (Metric)
40.6 cm
Height (Metric)
33 cm
Depth (Metric)
48.3 cm
Weight (Metric)
8.3 kg
Voltage
100/240 V
Base Style
Single mold Aluminum Die cast with ergonomic handrests
Design Type
Mechanical
Eyepiece
WF10X/20 mm
Lighting Type
LED
Objective Types
DIN Plan Achromatic
Grade
High school
Nosepiece
4-position reversed with click stops and rubber grip
Width (English)
16 in.
Height (English)
13 in.
Depth (English)
19 in.
Weight (English)
18.2 lb.
Electrical Requirements
100/240 V 50/60 Hz
Frequency
50/60 Hz
Related Products
Description
- Color-Corrected Infinity Plan optics, combined with well-corrected wide-field eyepieces, provide brilliant images with high-color fidelity and sharp contrast
- Rackless stage and low-position controls provide a high degree of convenience
- Metal composition of all critical mechanical components and gears and all-glass optical components deliver robust performance in educational, laboratory and research settings
- Eyepieces: spring-locked 10X/20mm focusable eyepieces with dual diopter adjustments, foldable rubber eye guards and antifungal coating Head: binocular/trinocular viewing tube with 30° viewing angle, 360° rotatable, interpupillary distance adjustment of 48 to 75mm Objectives: infinity plan-achromatic 4X (0.1 NA/ 30mm working distance [WD]), 10X (0.25 NA/ 4.82mm WD), 40X (0.65 NA/ 0.62mm WD), 100X (1.25 NA/ 0.11mm WD), all with antifungal coating, enable viewing of an assortment of specimens with the highest degree of clarity Nosepiece: reverse angle quadruple nosepiece (ball-bearing type) with click stops and rubber grip Stage: rackless 200 x 160mm mechanical stage with dual specimen holder and low-drive X/Y movement controls, 78 x 54mm X/Y travel range Condenser: Abbe 1.25 NA condenser with iris diaphragm, iris diaphragm with blue day light filter
- Rack and pinion movements on stainless-steel guides Stand: single-mold, rust-resistant stand with ergonomic hand rests that provide comfort and stability Focusing: coarse, 3mm/rotation; fine, 0.3mm/rotation; 12.7mm total travel range Illumination: available with halogen (6V/20w) bulb that provides 2000 hours of life or built-in rechargeable LED (3.4V/1w) that provides 100,000 hours of life Electrical: universal input 100 to 240VAC, 50/60Hz Order Info Dimensions: 19L x 16W x 13 in.H (48.3 x 40.6 x 33cm)
- Net weight: 18.2 lb
- (8.3kg)
- Polarizing kit available; see cat
- no
- S96042
- For details on other optional accessories, contact your Fisher Science Education Representative
- Certifications CE marked
- UL registered.
